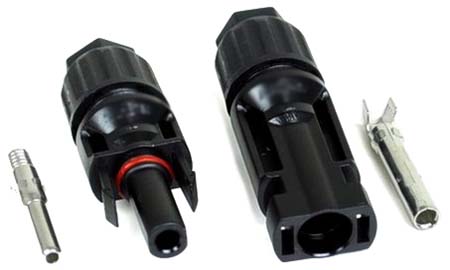

MC4 Connector is providing a type of connection for solar panels which consists of a female and a male connector. This female and male connector is in conjunction to a plug and socket design. When these two are pushed together, they form an interlocking connection between themselves. The connection will not disconnect when the cables are pulled out unintentionally.


Connector TypeMale & Female as Plug & Socket
ColorBlack
Number of Pins2
Protection Class:IP67
Rated Voltage1000V DC
Rated Current25A (2.5 sq. mm), 30A (4.0 sq.mm, 6.0sq.mm)25A (2.5 sq. mm), 30A (4.0 sq.mm, 6.0sq.mm)
Contact MaterialBrass with Nickel and Tin Plating
Contact Resistance0.5mΩ
Insulation MaterialABS/PC
